Technical Specifications
Specifications from the ABOLI user manual. Five mixing channels, RIAA phono, a microphone preamp, isolator, spring reverb, and the external ultra-low-noise power supply.
Inputs
Mixing Channels5, RCA and TS (mono/stereo)
Channel FormatRotary or Linear, per channel
Channels 1–4Line or RIAA phono, RCA
Channel 5Line, phono, or XLR microphone
Microphone Preamp+38 dB, 15V phantom
Input Gain-18 dB to +14 dB
ReturnTS, mono (L), with peak LED
Equalization
Channel EQ3-band, High / Mid / Low
Main Isolator3-band full-cut, with bypass
Booth EQ2-band, High / Low

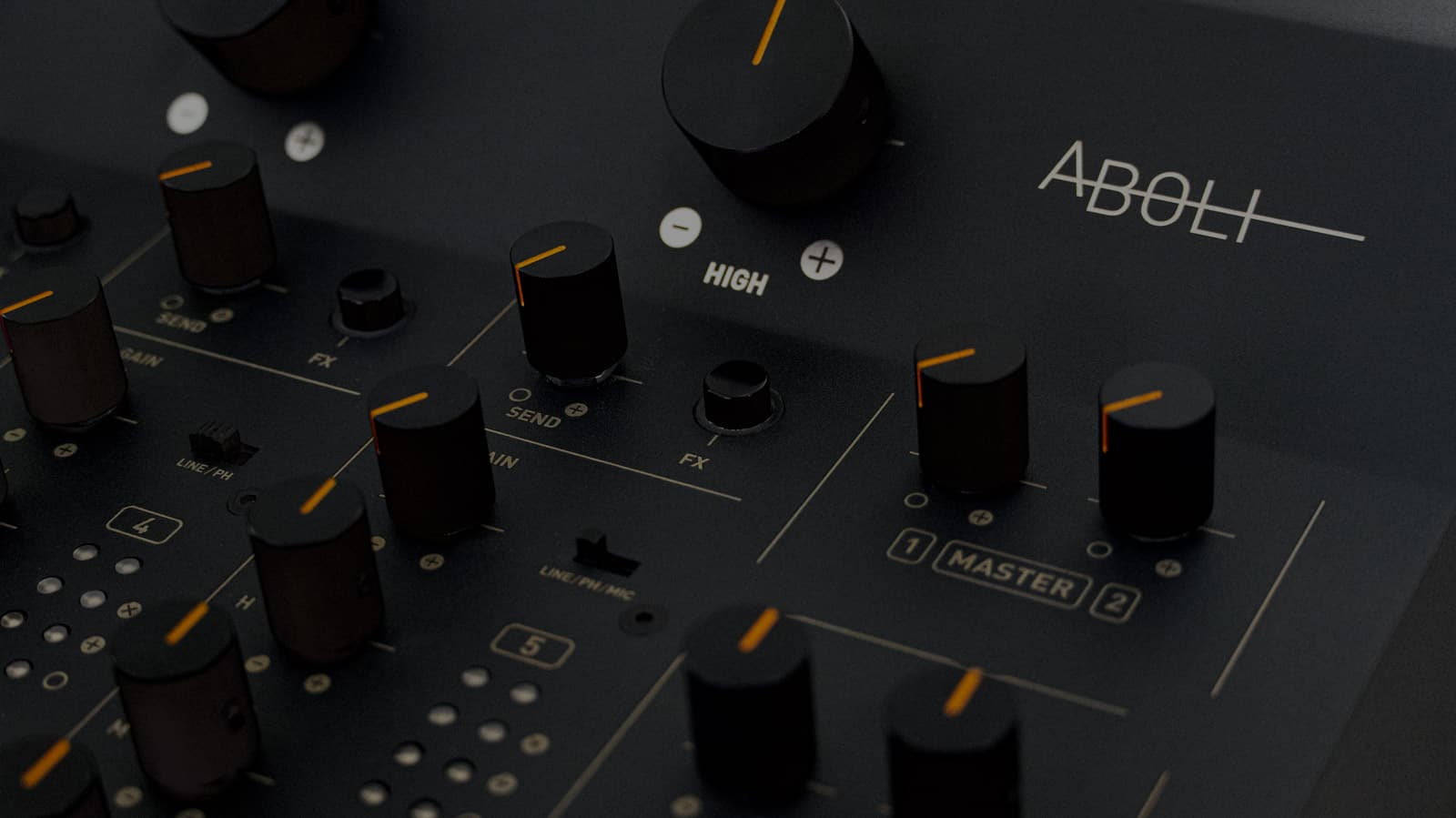

Monitoring & Effects
Channel MetersStereo VU, each channel
Master MeterStereo VU
Headphones2 × 6.3 mm, 2W, independent
CueCue 1, Cue 2, or both
Headphone SourcePre/post EQ, cue-to-master pan
Spring ReverbAnalog, assignable per channel
FX SendTS, level per channel
Outputs & Power
Master 1Balanced XLR, own volume
Master 2Unbalanced TS, own volume
BoothBalanced XLR and unbalanced TS
RecordStereo RCA
Mains100–240V AC, 50–60 Hz
DC Input36–300V
Supply Noise40 µV, 10 Hz to 100 kHz
Detailed Technical Data
Mixing Channels
5
RCA and TS, rotary or fader
Phono Inputs
5 × RCA
RIAA filter
Channel Gain
-18 to +14 dB
All five channels
Microphone
+38 dB
XLR, 15V phantom, channel 5
Channel EQ
3-band
High, Mid, Low
Isolator
Full-cut
High, Mid, Low, with bypass
Headphones
2 × 2W
6.3 mm jacks, independent
Spring Reverb
Analog
Assignable to each channel
Master Outputs
XLR + TS
Balanced and unbalanced, separate levels
Booth Output
XLR + TS
Shared level, 2-band EQ
Power
AC or DC
100–240V AC, or 36–300V DC
Supply Noise
40 µV
10 Hz to 100 kHz
